STM32CubeIDE

Integrated Development Environment

Install

Unzip the file.

On linux:

chmod 777 *

st-stm32cubeide_1.17.0_23558_20241125_2245_amd64.sh

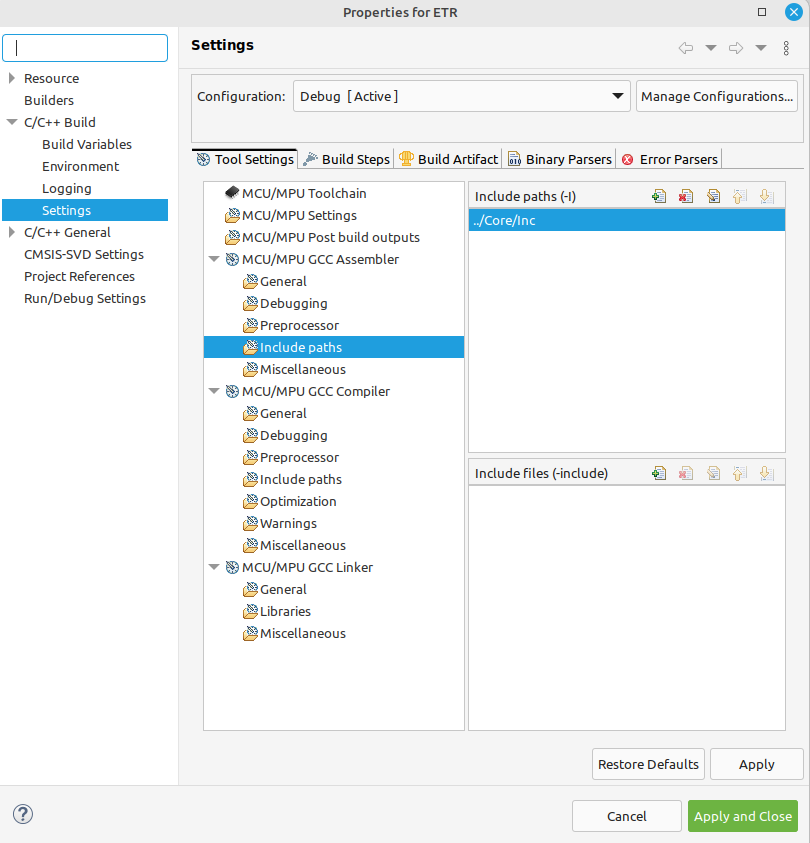

Assembler - include files

ETR

HAL

Suppress this file:

HAL

Configuration

If you build a project and face warnings like these:

  • in function `_close_r’:

(.text._close_r+0xc): warning: _close is not implemented and will always fail

  • in function `_lseek_r’:

(.text._lseek_r+0x10): warning: _lseek is not implemented and will always fail

  • in function `_read_r’:

(.text._read_r+0x10): warning: _read is not implemented and will always fail

in function `_write_r’:

(.text._write_r+0x10): warning: _write is not implemented and will always fail

_close_r’ `_lseek_r’ `_read_r’ `_write_r’

Solution

libraries

  • Check “Do not use standard start files”

  • Check “Do not use default libraries”

  • Check “No startup or default libraries”

  • options -> -nostartfiles -nodefaultlibs -nostdlib

Zoom in, zoom out

Zoom in: Ctrl + Use the + on the = key, not the keypad +!

Zoom out: Ctrl -, do no use keypad

linker: use your own .ld file

In Linker Script, you can use the Browse button:

.ld file
example of .ld file
 ENTRY(Reset_Handler)

 MEMORY
 {
   FLASH (rx)   : ORIGIN = 0x08000000, LENGTH = 1024K
 SRAM  (rwx)  : ORIGIN = 0x20000000, LENGTH = 96K
 SRAM2 (rwx)  : ORIGIN = 0x10000000, LENGTH = 32K
 }


 SECTIONS {
  .text : {
    *.o(.text)    /* fhc.o(.text) */
    *(.rodata*)
     } >FLASH

 .data :  {
      *.o(.data)
     } >SRAM AT> FLASH
 }

make: use your own makefile file

remains to be done

import project

import project

location of STM32CubeIDE toolchain

The toolchain is located in the STM32CubeIDE installation folder under the ‘plugins’ directory.

import project

/home/fhc/st/stm32cubeide_1.17.0/plugins/com.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.12.3.rel1.linux64_1.1.0.202410170702/tools/bin

/home/fhc/st/stm32cubeide_1.17.0/plugins/com.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.12.3.rel1.linux64_1.1.0.202410170702/tools/bin

ln -s /home/fhc/st/stm32cubeide_1.17.0/plugins/com.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.12.3.rel1.linux64_1.1.0.202410170702/tools/bin /home/fhc/tool

Make a symlink in your local directory

ln -s /very/long/path ~/foo

You can now do cd foo

It will take you to /very/long/path.

$ ls -l tools total 4 lrwxrwxrwx 1 fhc fhc 146 Nov 28 21:55 bin -> /home/fhc/st/stm32cubeide_1.17.0/plugins/com.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.12.3.rel1.linux64_1.1.0.202410170702/tools/bin

Use cd -P foo to display /very/long/path

echo $PATH /home/fhc/.local/bin: /usr/local/sbin: /usr/local/bin: /usr/sbin:/usr/bin:/sbin:/bin:/usr/games: /usr/local/games: /snap/bin: /home/fhc/TOOLCHAIN/bin: /home/fhc/.local/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/snap/bin

Locked Workspace

“Please choose another workspace as <current workspace> is currently in use.

Delete the .lock file in the .metadata directory in your workspace directory.

STM32CubeIDE gcc

AS

-mcpu=cortex-m4 -g3 -DDEBUG -c -I../Core/Inc -x assembler-with-cpp –specs=nano.specs -mfpu=fpv4-sp-d16 -mfloat-abi=hard -mthumb

C

-mcpu=cortex-m4 -std=gnu11 -g3 -DDEBUG -DUSE_HAL_DRIVER -DSTM32L476xx -c -I../Core/Inc -I../Drivers/STM32L4xx_HAL_Driver/Inc -I../Drivers/STM32L4xx_HAL_Driver/Inc/Legacy -I../Drivers/CMSIS/Device/ST/STM32L4xx/Include -I../Drivers/CMSIS/Include -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity –specs=nano.specs -mfpu=fpv4-sp-d16 -mfloat-abi=hard -mthumb

LINKER -mcpu=cortex-m4 -T”/home/fhc/STM32CubeIDE/workspace_1.17.0/xx/STM32L476RGTX_FLASH.ld” –specs=nosys.specs -nostartfiles -nodefaultlibs -nostdlib -static -nodefaultlibs –specs=nano.specs -mfpu=fpv4-sp-d16 -mfloat-abi=hard -mthumb

Construct a project

File→New→Project.

In the New Project dialog, select C Project in C/C++.

project

Give a project name and choose Empty Project and MCU ARM GCC.

project
project

Choose STM32 target:

project

Install STM32CubeMonitor

In case you have the following error:

$ sudo apt install stm32cubemonitor_1.9.0_amd64.deb
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done

E: The package stm32cubemonitor needs to be reinstalled, but I can't find an archive for it.

do the following:

change status
 $ sudo mv /var/lib/dpkg/status ~/status.bak
 $ sudo cp /var/backups/dpkg.status.0 /var/lib/dpkg/status
 $ sudo apt-get update

Configure STM32CubeMonitor

Double click on the myProbe_Out node:

CubeMonitor

Click on the + button (Add New Probe Config Node):

CubeMonitor
CubeMonitor

Modify the protocol and frequency if need be:

CubeMonitor

Validate by clicking on “Add”, then on “Done”.

You can make the ST link blink by pressing the LED button.

Click on DEPLOY -> Successfully deployed

Configure variables

“Variables” node
